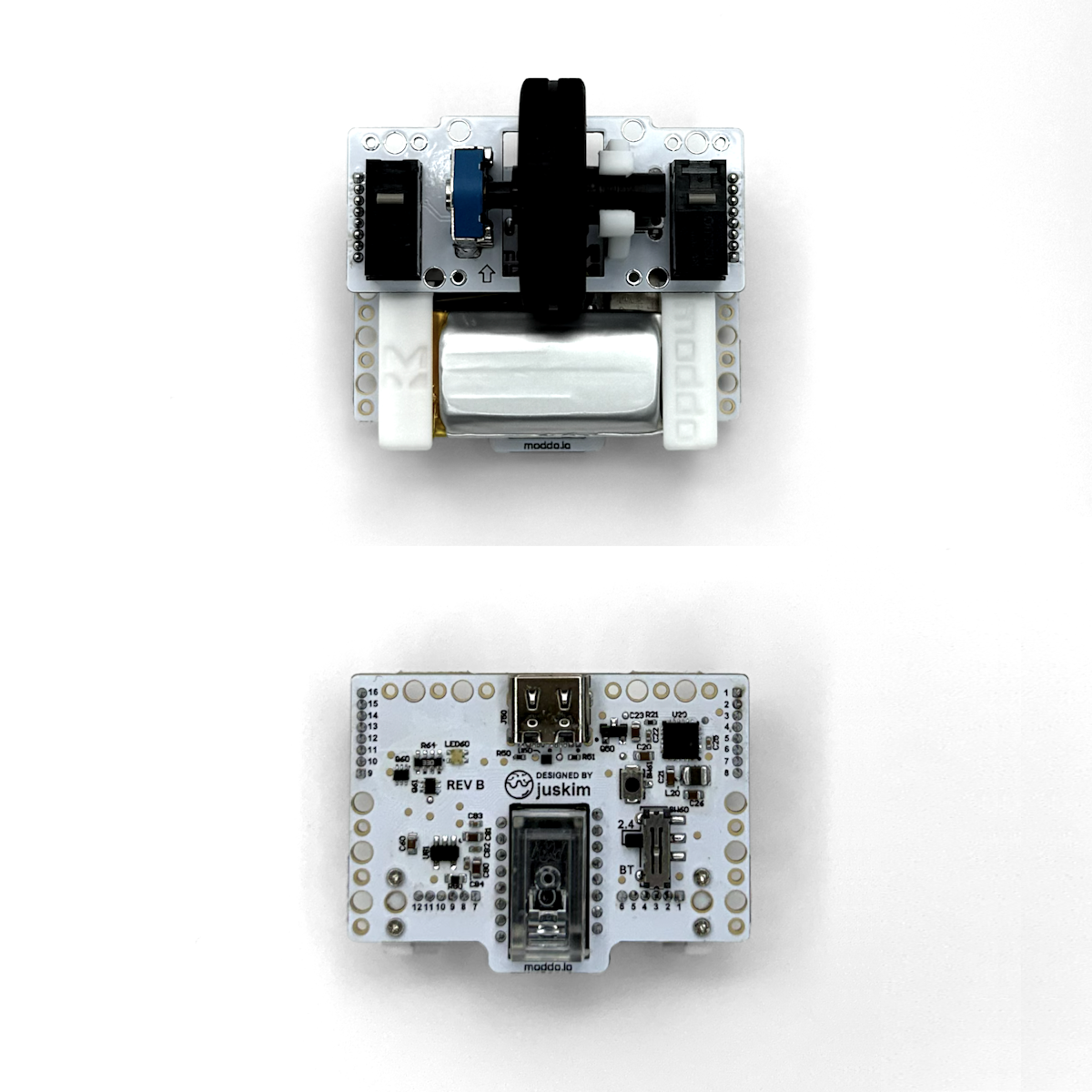

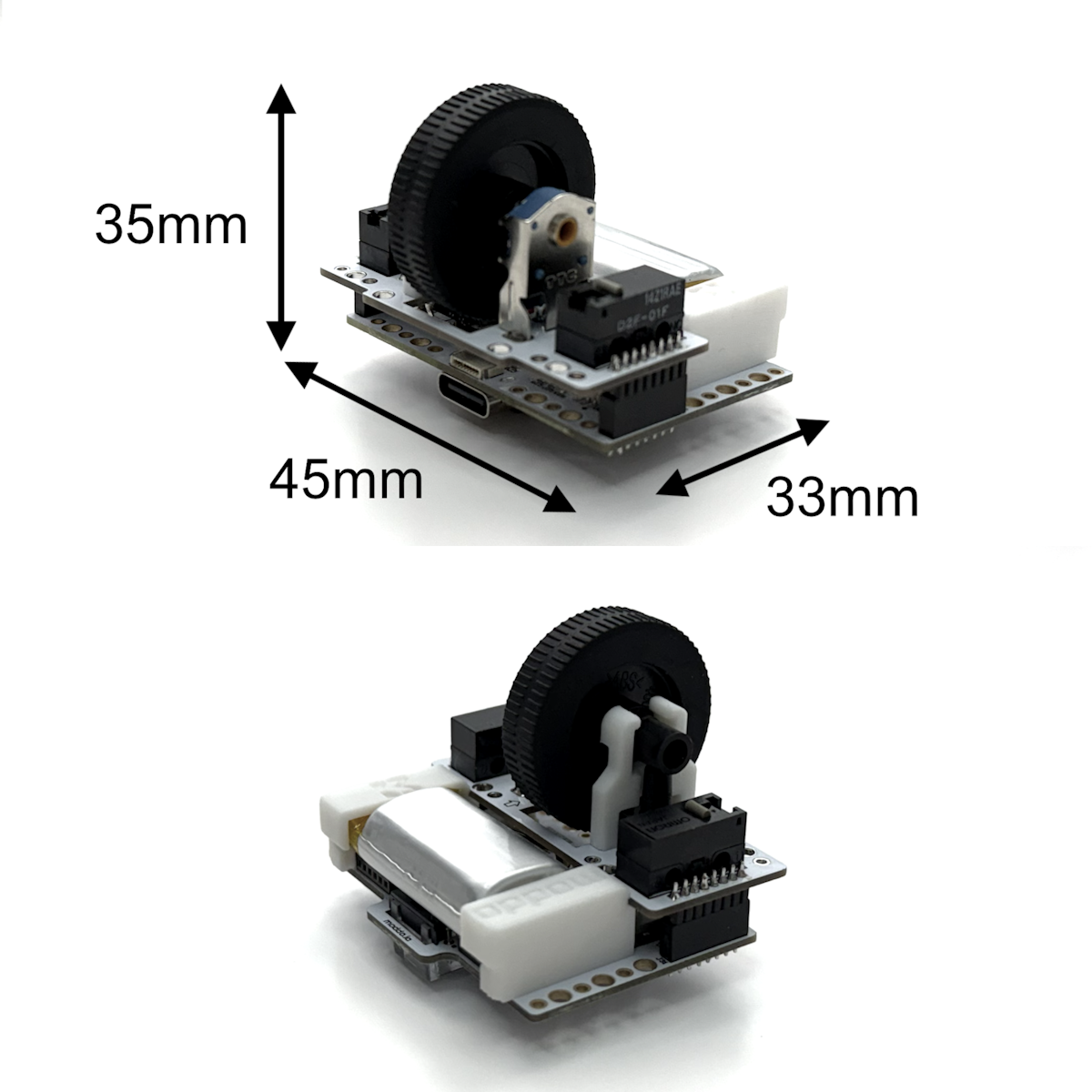

moddoMOUSE PCB Kit

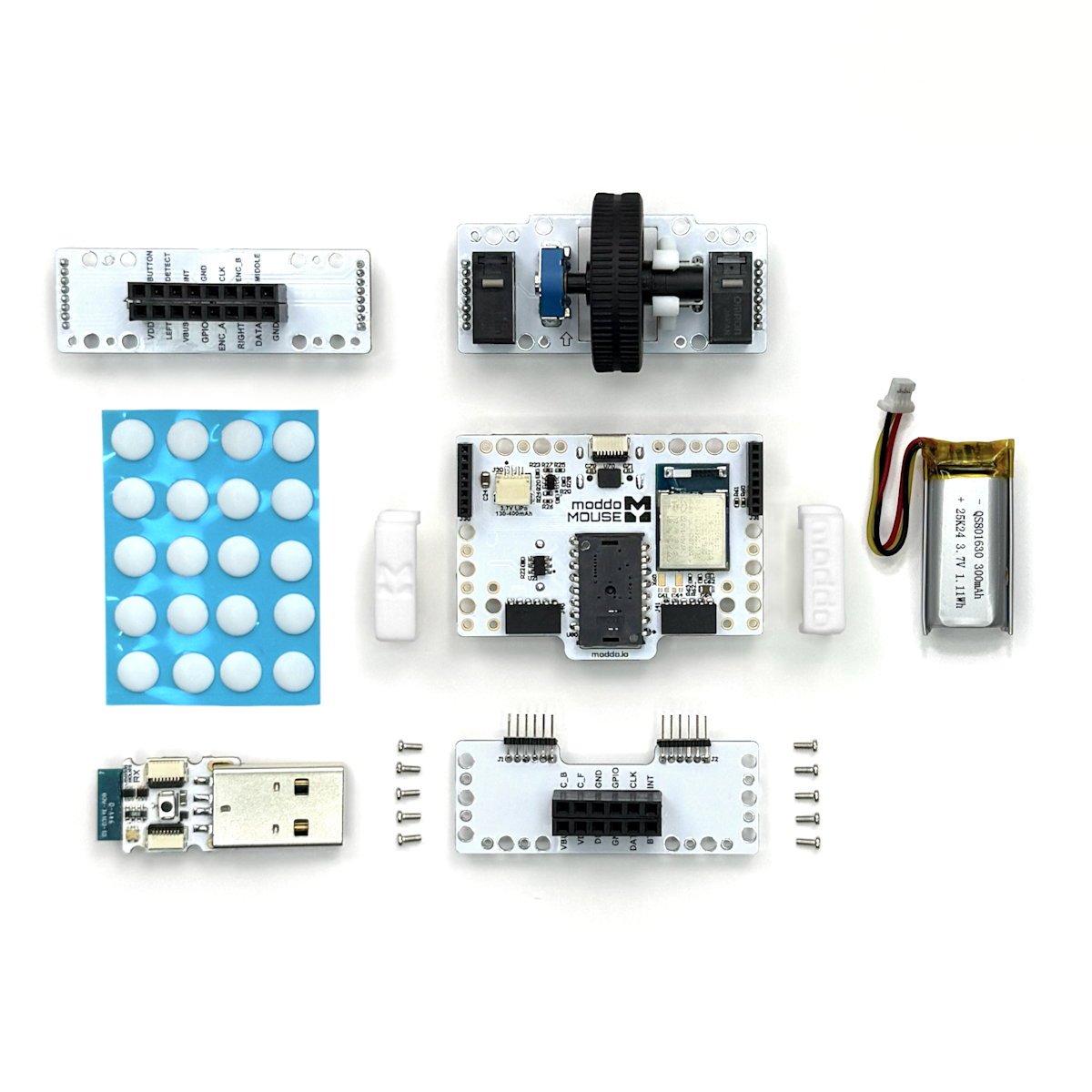

*KIT INCLUDES PCBs ONLY.* You’ll add your own 3D printed shells and mods. This kit includes:

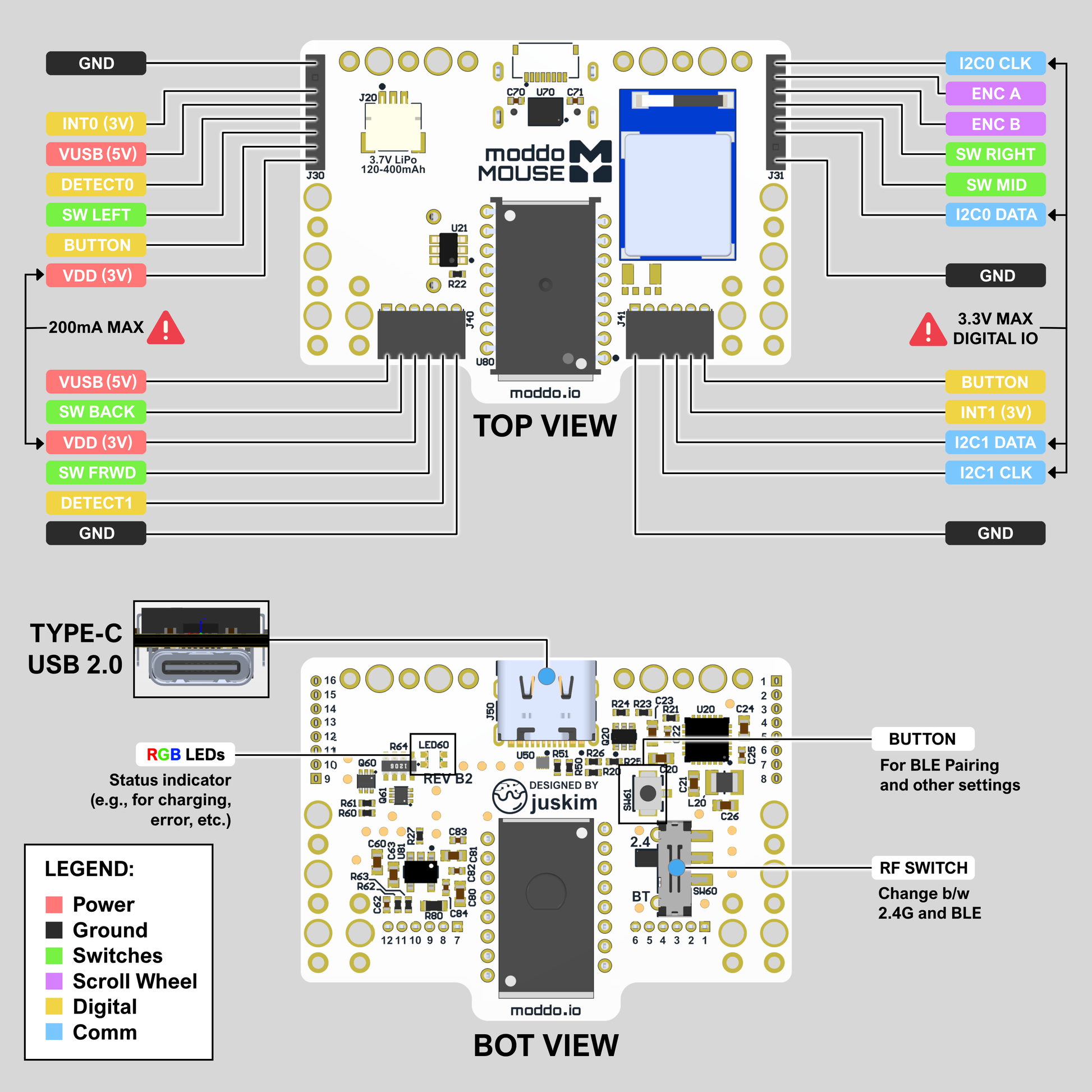

• Main board with PAW3395 & nRF52
• Front board with scroll wheel
• Front & back breakout boards
• 2.4G USB dongle (1kHz max polling)
• Battery (300 mAh) & battery holders
• M1.2 screws (x10)
• Ultraglide ICE dot skates 6.5mm (x20)

Add up to 64 additional custom keys, up to 2 analog joysticks, and more with our Arduino Library! All possible using I2C/TWI interface with the Main Board. Control the Main Board using our Web/Desktop App. All switches are Omron D2F-01F. All 3D printed parts in this kit uses PLA Tough+ filament.

Please review our return/warranty policy.

BATTERY WARNING: Only moddo batteries are supported. Use of non-moddo batteries will void the warranty, and we are not responsible for any resulting issues or damages.
